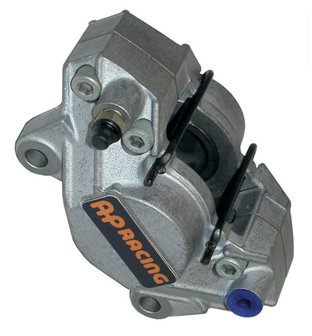

AP Racing CP3696-6E0

Features: - Lug Mount, 89mm x 19.1mm centres. - Two piece Aluminium alloy body. - Suits Ø267mm x 7.1mm solid disc. - Aluminium Pistons. - 'R'...

Verzendkosten

: € 10,77

€ 344,99

Prijs per stuk

Voorraad : 4

Aantal:

Bestellen

Features:
- Lug Mount, 89mm x 19.1mm centres.
- Two piece Aluminium alloy body.
- Suits Ø267mm x 7.1mm solid disc.
- Aluminium Pistons.
- 'R' Clip pad retainer.
- Interchangeable with CP2505-3S0.

Part Numbers:
- CP3696-6E0.

Brake Pad Information (To view an image of the pad click on Pad Part No)	CP2195D38 - Pad Area = 22.4cm² - Pad Depth = 38.4mm - Thickness = 10.5mm
TECHNICAL SPECIFICATIONS
Piston Sizes - mm	41.3
Piston Area cm³	26.7
Disc Diameter - mm	Ø267
Disc Thickness - mm	7.1
Weight (no pads) - kg	800g
Hydraulic Threads	3/8"x24UNF
Mounting Type	Lug
Mounting Centres - mm	89.0
Mounting Offset - mm	19.1
Mounting Hole Ø - mm	10.15
‘PL’ Dimension - mm	45.5
Bleed Screw Tightening Torque	17Nm
SPARE PARTS
Pistons	CP3696-105
Seal Repair Kit	CP4518-K
Pad Retainer	CP3696-106
Bleed Screw	CP3720-182
Fluid Pipe	N/A
