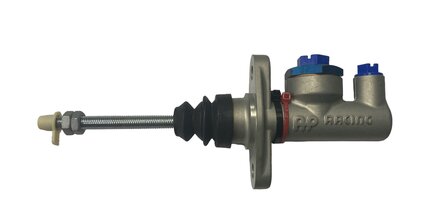

AP Racing rempomp CP2623-89PRT115 MCYL-15.00xALU-REMTUF
AP Racing rempomp CP2623-89PRT115 MCYL-15.00xALU-REMTUF
CP2623 Type A lightweight compact forged bodied master cylinder suitable for all brake and clutch applications especially where space is restricted. Features: - Forged Aluminium Alloy Body....

Verzendkosten

€ 10,77

€ 233,99
Prijs per stuk

Voorraad : 1

Aantal:
Bestellen


CP2623 Type

A lightweight compact forged bodied master cylinder suitable for all brake and clutch applications especially where space is restricted.

Features:
- Forged Aluminium Alloy Body.
- 50g weight saving over cast version
- Short travel to cut-off.
- Non Captive Cylinders available.
- Hydraulic threads are imperial.

Weight

CP2623-88 to -94 = 0.300g (.66lbs)
CP26223-95 & -96 = 340g (.750lbs)

Full Stroke 25.4mm (1.00")
Travel To Cut-Off Short - 0.68 to 1.09mm (0.27 to 0.43")
Inlet Hydraulic Thread 7/16" x 20UNF
Outlet Hydraulic Thread 3/8" x 24UNF
Push Rod Threads Available - PRM = M8 x 1.25mm- PRT = 5/16" UNF
Push Rod Length from Mounting Flange PRM065 - 65mm (2.55")
PRM088 - 88mm (3.46")
PRM/PRT115 - 115mm (4.53")
PRM/PRT160 - 160mm (6.30")Other Pushrod Lengths available. Contact Technical Department for more information.
Bore Sizes Available Part Numbers
14mm CP2623-88PRM115 / CP2623-88PRM160
CP2623-88PRT115 / CP2623-88PRT160
15mm CP2623-89PRM088 / CP2623-89PRM115 /
CP2623-89PRM160
CP2623-89PRT115 / CP2623-89PRT160
15.9mm (.625") 5/8" CP2623-90PRM065 / CP2623-90PRM088
CP2623-90PRM115 / CP2623-90PRM160
CP2623-90PRT115 / CP2623-90PRT160
16.8mm CP2623-905PRM088 / CP2623-905PRM115 /
CP2623-905PRM160
CP2623-905PRT115 / CP2623-905PRT160
17.8mm (.70") CP2623-91PRM065 / CP2623-91PRM088
CP2623-91PRM115 / CP2623-91PRM160
CP2623-91PRT115 / CP2623-91PRT160
19.1mm (.75") 3/4" CP2623-92PRM065 / CP2623-92PRM088
CP2623-92PRM115 / CP2623-92PRM160
CP2623-92PRT115 / CP2623-92PRT160
20.6mm (.812") 13/16" CP2623-93PRM065 / CP2623-93PRM088
CP2623-93PRM115 / CP2623-93PRM160
CP2623-93PRT115 / CP2623-93PRT160
22.2mm (.875") 7/8" CP2623-94PRM065 / CP2623-94PRM088
CP2623-94PRM115 / CP2623-94PRM160
CP2623-94PRT115 / CP2623-94PRT160
23.8mm (.937") 15/16" CP2623-95PRM065 / CP2623-95PRM088
CP2623-95PRM115 / CP2623-95PRM160
CP2623-95PRT115 / CP2623-95PRT160
25.4mm (1.00") CP2623-96PRM065 / CP2623-96PRM088
CP2623-96PRM115 / CP2623-96PRM160
CP2623-96PRT115 / CP2623-96PRT160
